Moon age 6.1 days – Illumination 30 % - 20.08.2015

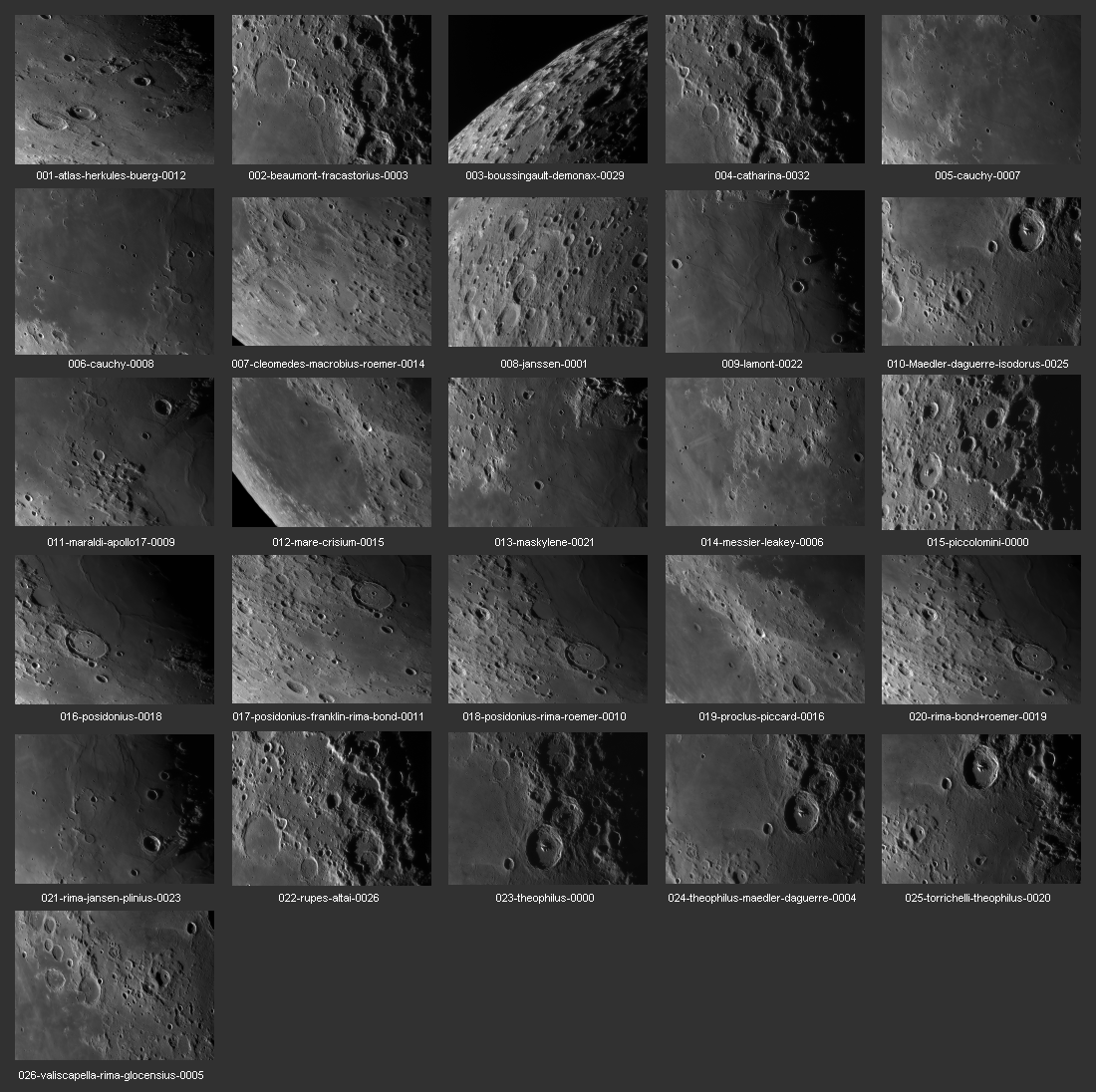

Image number and crater list
Mosaics
Interesting image details
Special Images
  New mages 2016


Image Number Craters - in alphabetical order Special details

download pdf-file with descriptions of exceptional or unique lunar structures at this moon age
LUNAR 100

01 Atlas, Hercules + Endymion FF-crater Atlas + Rima and Rupes Bürg in Lacus Mortis
02 Beaumont, Rosse and Fracastorius Catharina at sunrise, secondary craters in the Tycho-ray north of Rosse
03 Boussingault and Demonax -
04 Catharina northern part of Rupes Altai (wall of Nectarian basin)
05 Cauchy Rupes- and Rima Cauchy, FF-crater Taruntius
06 Cauchy and Sinas Cauchy dome field
07 Cleomedes, Macrobius and Römer -
08 Janssen and Fabricius Rima Janssen
09 Lamont lunar domes Arago alpha and Arago beta
10 Mädler and Daguerre central mountains of Theophilus and Capella
11 Maraldi, megadomeplateau Gardner and Vitruvius Littrow-Taurus mountains, landing site of Apollo 17
12 Mare Crisium -
13 Maskylene Rimae Maskylene, Rimae Hypathia
14 Messier and Leakey ray system of Messier
15 Piccolomini, Lindenau, RabbiLevi southern part of Rupes Altai (wall of Nectarian basin)
16 Posidonius Rima G. Bond and sinuous rille on the western crater floor of Posidonius
17 Posidonius and Franklin FF-crater Posidonius and Franklin, Rima G. Bond
18 Posidonius Rima G. Bond and Rima Römer
19 Proclus detailed structures on the crater floor of Proclus
20 Rima Bond and Rima Römer -
21 Rima Jansen and Plinius -
22 Rupes Altai part of the wall of Nectarian basin
23 Theophilus, Cyrillus and Catharina Cyrillus and Catharina at sunrise
24 Theophilus and Cyrillus -
25 Torrichelli unique crater form
26 Vallis Capella crater chain through Capella


Mosaics

Mare Nectaris, from Torrichelli to Fracastorius
Rima Goclensius, Messier
Posidonius, Rima G. Bond and Rimae Römer
Rupes Altai
Theophilus, Cyrillus and Catharina, Mare Nectaris


Interesting image details

Image 009 - shows the poorly understood lunar structure Lamont, a region of concentric and radial ridges. Lamont is the center of a MASCONS - a mass concentration. The lunar domes Arago Alpha and Beta are west of Lamont.

Image 016 - shows a nameless fault (long straight structure) which also proceeds into a rille. At sunrise the fault appears excactly straight as drawn with a ruler.

Detailed descriptions of other exceptional or unique structures at this moon age you can find in this pdf-file

« Special Images

The image to the left shows the sunrise over the Floor Fractured crater Posidonius in 3 phases

Moon age from left to right: 5.5, 6.1 and 7.1 days.

Click here or on the preview to load a larger image.
« Special Images

NEW 2016 - The left picture shows the lunar structure La Mont at a Moon age of 5.9 days. In the center there is a mass concentration a so-called MASCON. The image quality is not so good here and the processing is extreme, but it shows the ridge system of La Mont in its whole extent. East of La Mont is a system of rilles with the unofficial name "Rima Diamondback" (Crew Apollo 11).

Click here or on the preview to load a larger image.
